Ranger 14kW, 19"/14" Moto rims, 48Ah, Green, ver. b

Photos

Ranger 14kW, 19"/14" Moto rims, 48Ah, Green, ver. b

ASB-DHSB006-1

A one of a kind bike, for a one of a kind riding experience. With a unique construction and frame, complemented with a low centre of gravity – the Kuberg Ranger offers better stability on any terrain, with no limit to your freedom of movement so you can stand, jump and speed in comfort. Double battery for double the fun! Upgraded version with new type of motor and new front fork, with tuned controller firmware, recuperation directly on the throttle and waterproof charging connector. https://www.kuberg.com/en/ranger

In stock 2 pcs

$8,694.75

Price without VAT: $8,694.75

↓ SCROLL DOWN to see all the features... ↓

Ranger

Watch Video

One of a kind
riding experience

Scooter, or dirt bike? you decide. The brand new Ranger from Kuberg. Sporting a unique standing position, a fully reclining seat, unbeatable power and unmatched riding versatility.

Explore

Conquer any obstacle, jump, or mountain

Conquer

Cruise

Choose your way

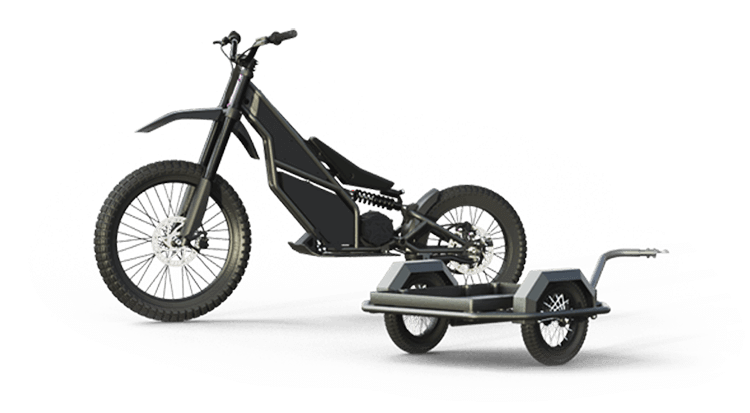

Adventure

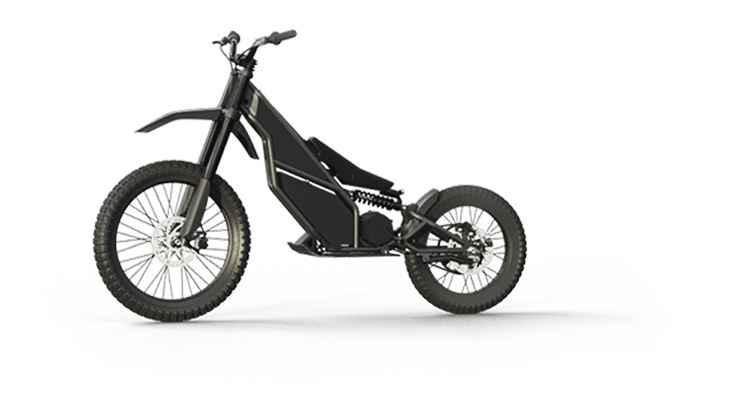

Race

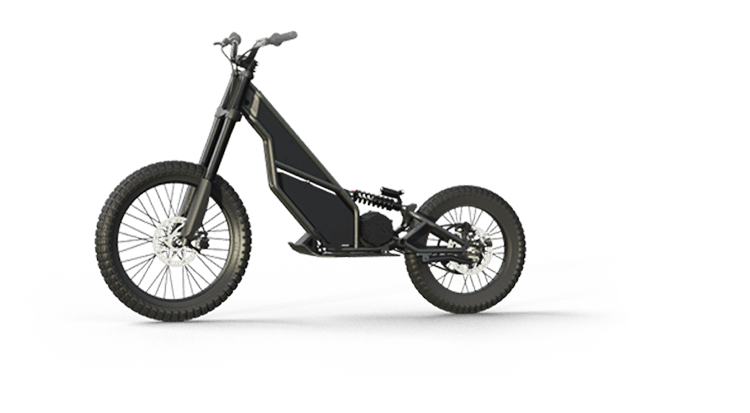

Standard

adventure

adventure race standard

14^kW *peak electrical draw power

Reclining Seat

Fenders

Kickstand

24 AH Battery

Re-Gen Breaking

Trailer

14^kW *peak electrical draw power

Reclining Seat

Fenders

Kickstand

24 AH Battery

Re-Gen Breaking

8^kW *peak electrical draw power

24 AH Battery

Re-Gen Breaking

What makes ranger
so unique

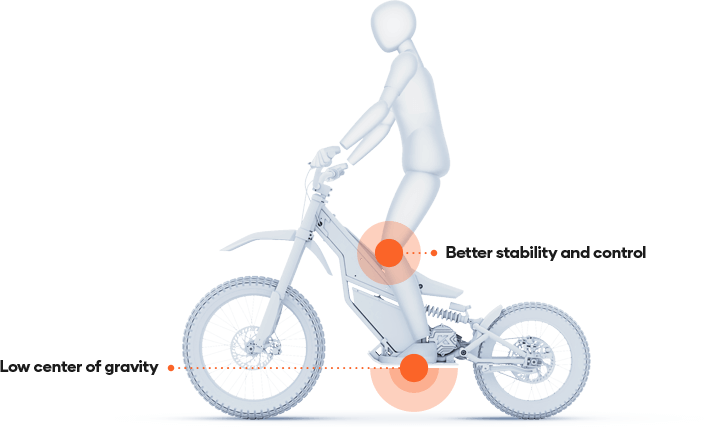

Construction

This bike is built for any rider of any skill level. The center of gravity feels natural to give you the confidence to shred on any terrain no matter your skill level.

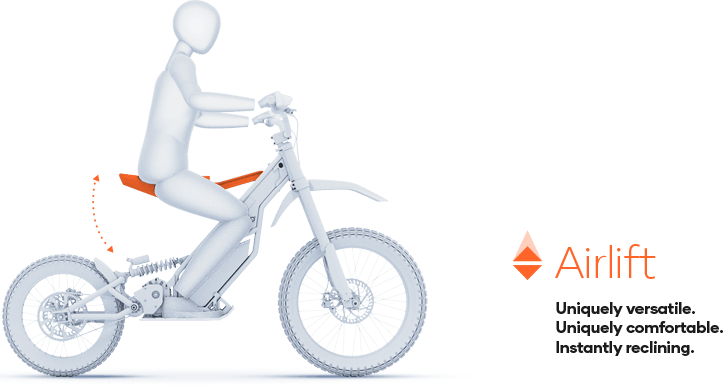

Reclining Seat

Our pneumatic seat rises by the press of a button to your preferred seat height.

Components

A one of a kind battery

Swappable superpower. Hand made by us in our factory, using only the best cells on the market. Housed in a fireproof case and ladened with features to prevent overheating - it couldn't be any safer. What are you waiting for?

A one of a kind controller

Our BLDC Controller is the brain behind the brawn. It translates battery power to immense riding power in seconds. With over 4 years of development behind it, it’s nothing short of perfect.

Proprietary motor technology

The Ranger's motor is entirely unique thanks to its BLDC technology which allows us to extract the maximum potential out of our batteries. Each one of our motors is hand-crafted by our technicians and engineers.

A one of a kind battery

A one of a kind controller

Our BLDC Controller is the brain behind the brawn. It translates battery power to immense riding power in seconds. With over 4 years of development behind it, it’s nothing short of perfect.

Proprietary motor technology

A one of a kind battery

A one of a kind controller

Our BLDC Controller is the brain behind the brawn. It translates battery power to immense riding power in seconds. With over 4 years of development behind it, it’s nothing short of perfect.

Proprietary motor technology

Go anywhere ability

Super Lightweight

Ride anywhere. Just pick it up, and go. Whatever the situation. It’s that light.

Super Silent

Never ruin anyone’s day again. The loudest component is our sprocket.

Instant Torque

From thick mud to smooth tracks, ride any terrain, anywhere. The Ranger’s huge torque will always have you conquering any obstacle.

See all specification

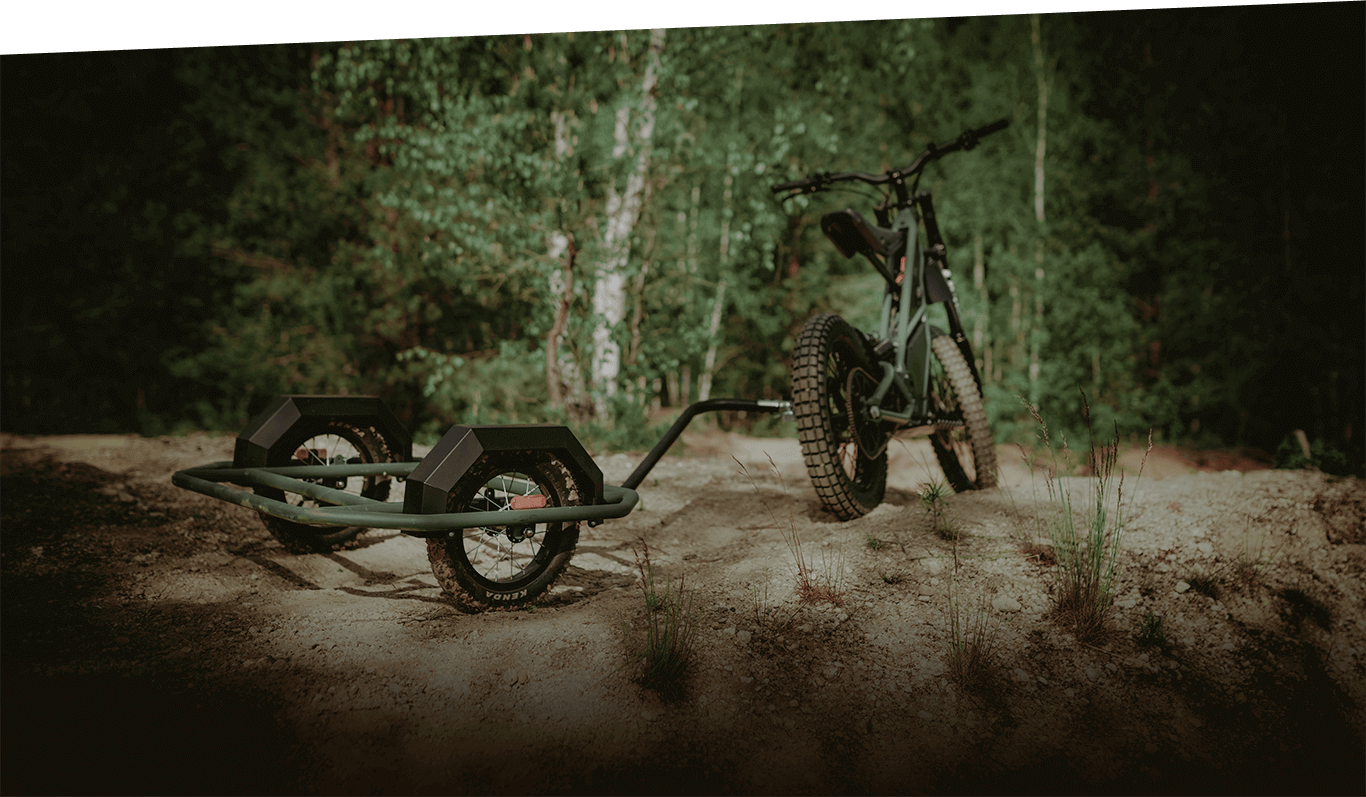

Ready for
any job

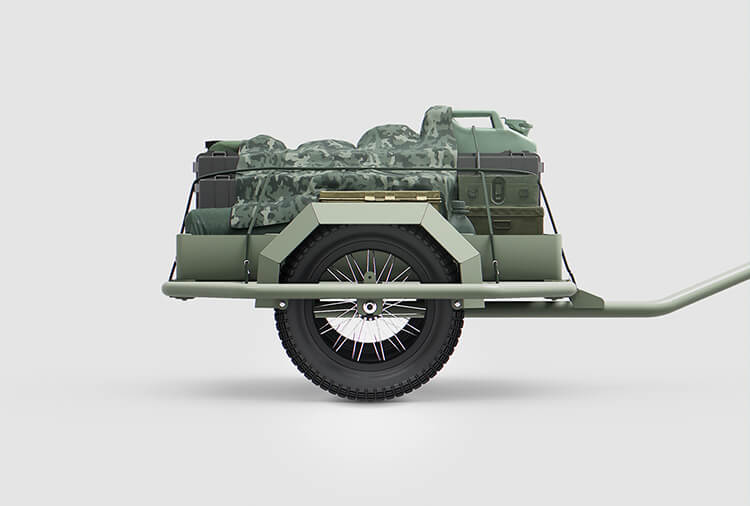

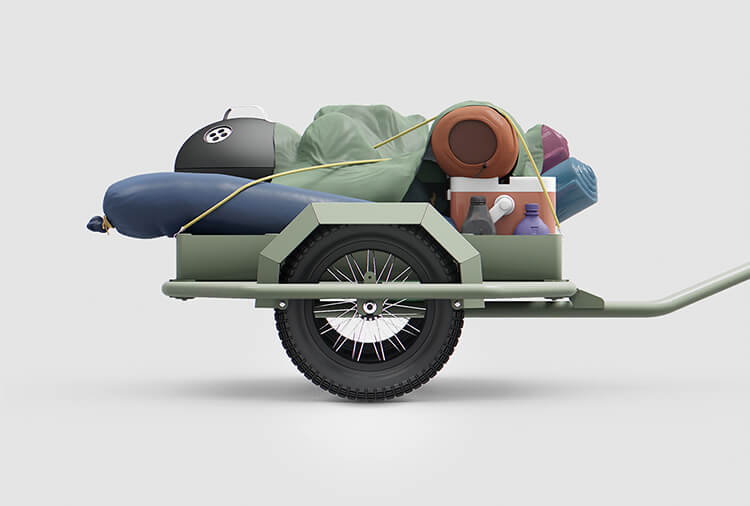

The ranger doesn’t just play hard. It also works hard. From commuting to heavy lifting, it’s a workhorse – suitable for all of your needs.

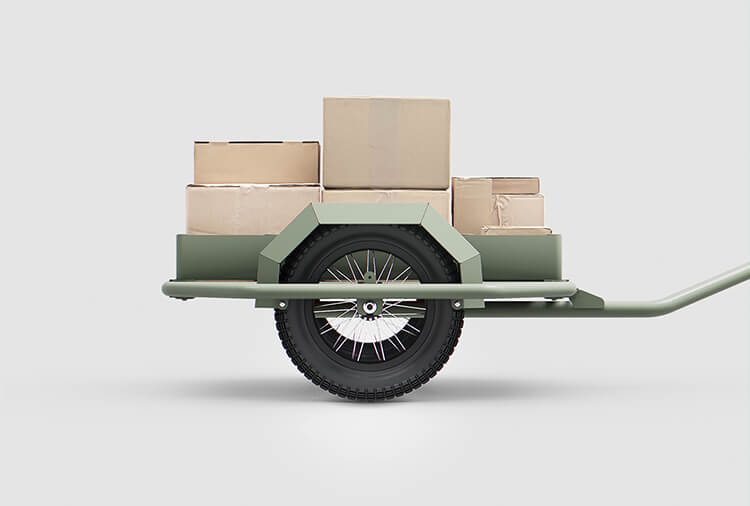

Maximum load capacity

66 lbs / 30 kg

Versatile heavy duty construction allowing you to attach anything you may need for your adventures. Flatbed, side rails, front rails, fixing loops - all is there.

Maximum load capacity

66 lbs / 30 kg

Versatile heavy duty construction allowing you to attach anything you may need for your adventures. Flatbed, side rails, front rails, fixing loops - all is there.

Maximum load capacity

66 lbs / 30 kg

Versatile heavy duty construction allowing you to attach anything you may need for your adventures. Flatbed, side rails, front rails, fixing loops - all is there.

Loved by pros

Justin Hill

Pro MX Rider

“I personally would use the Ranger all day everyday! With the drop seat function, the sky is the limit. I would take it to town, to work, on the trails, on the track, on the ramps, everywhere. You can cruise it, rip it, flip it, send it, all without waking up the neighbors!”

Bryce Tryon

Pro MX Rider

“The first time riding it, I was completely blown away about how fast it was. I was not ready for it! It ’s pretty dope.”

How it's made?

Exclusive look
into our company

Detailed specifications

Controller KUBERG BLDC PRO, 48 V

Power options 8, 12 or 14 kW (peak electrical draw power)

Input Standard 110 V or 230 V

Battery Li-Ion 48 V, 24 Ah or 48 Ah

Range Full power mode 19 miles (30 km) or 38 miles (60 km)^*

Power Modes 3 settings

Charge time 2,5 h or 5 h^*

Transmission Clutchless one speed

Final Drive 16T / 35T; 25T/85T

Top speed 50 MPH^**

Chain 219H

Frame Steel double cradle tube frame, powder-coated

Foot board height 10” (24 cm)

Handlebar height 43.7” (111 cm)

Wheelbase 50.4" (128 cm)

Seat Reclining 23" - 34.3" (57-87 cm)

Brakes Tektro Orion 4-Piston

Brake discs Hardened stainless brake discs SBT 35HRC 203 / 203 mm

Brake pads Sintered brake pads

Fork Manitou Dorado 200 mm

Tires Front 19x2.75" Kenda, Rear 14x3" Tire Options: Trail/Knobby

Shock Absorber DNM Burner-RCP-3 200 LBS

Carrying capacity Maximum 220 pounds (100 kg)

Towing capacity Maximum 66 lbs (30 kg)

Weight 50 kg or 57 kg^*

Colours Black, Military Green

^*with double battery pack
^**for 14 kW version
